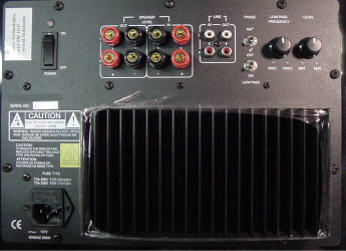

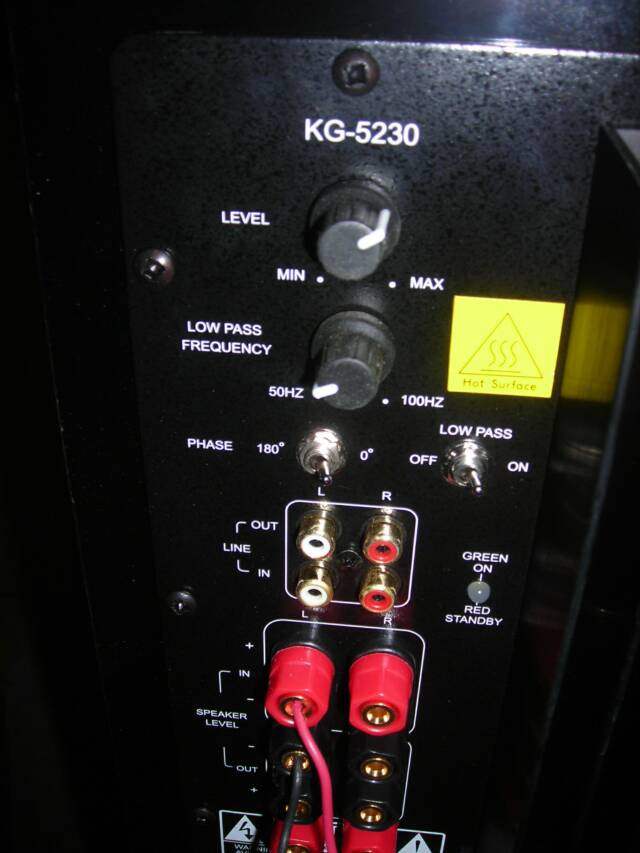

Models UFS 12,10 and 8/9 P powered under floor subwoofers feature proprietary extended line, multi-duct line loading for high output, linear bass response with extremely low distortion. Solid 46 lb. exterior grade MDF construction, proprietary woofers and a high power, reliable, class AB power amplifier make these a favorite among professional installers. Bottom panel is removable to access driver baffle  for fast, easy service. Heavily braced cabinet panels prevent flexing and bass loss. External power amplifier has an array of controls and features that allow for precise tuning to room environments

Bass output vent is designed to accommodate most heating and air conditioning floor registers and is ideal for upscale installations where high performance and power are essential. Available with amplifier built in or separate in its own enclosure.
.
Under Floor Subwoofers
Models UFS 12,10 and 8/9 P
Specifications

System design -               Sealed band pass, under floor subwoofer
Magnet size & VC    -       12” 50 oz, 2 “ vc (UFS 12P). 10” 40 oz – 1.5”vc (UFS 10 P), 8" 30 oz (UFS 8 P)
Woofer Frame          Rigid Cast Aluminum on 8", Heavy gauge stamped steel for 10" and 12"
Amplifier power      270 W  RMS on UFS 8 and 10,   400 W module for UFS 12"
Maximum output      114 db ( UFS 12), 109 db ( UFS 10) , 102 db ( UFS 8)
Frequency response        35 Hz – 120 Hz(12 P) 39 Hz- 120 Hz (10 P), 44 hz - 120 Hz (8 P)

Dimensions       32”L x 11.7” h x 13.5” W– UFS 12; 32”L x 10.5” h x 13” W - UFS 10;
   32" L x 11.5 h x 9" W - UFS 8/9 P
Vent Size   12"(2.25" x 12.5"), 10" (2.25 x 11.5"), 8" (3" x 8")

Rec.Floor Reg Size           4" x 14 "
Rec. Room Size -     200 - 600 sq ft (UFS 12); 200-400 sq ft (UFS10); 150-300 sq ft (UFS 8)

Wt -incl  amp     69 lbs (UFS 12 P).  62 lbs (UFS 10 P), 52 lbs (UFS 8 P)
