IW 2268 WC
The IW 2268 WC is a state of the art in wall system designed to optimize home theater and stereo. Its performance places it in a rare echelon of in wall speakers that rival the sound of the best out of wall speakers. The IW 2268 WC features aluminum baffle support  and massive inner trestle assembly that couples, via ¼” steel bolts, to a ¾” thick MDF mounting baffle for maximum rigidity and efficiency. Proprietary cast Quiet Cone™
wool /carbon woofers, and Vifa 1”dome tweeter provide outstanding  performance with excellent dynamics and power bandwidth.  A minimum phase HQ crossover includes polypropylene capacitors and a customized level control that optimizes high frequency response for prevailing room acoustics.
Specifications

System Design  Dual 8”  3  way in wall system.
Woofers   (2) – 8” Wool/Carbon
Midrange  (1) – 6 “ Wool/ Carbon
Tweeter    (1)- Vifa DX HQ dome tweeter.
Frequency Resp.      45 hz- 20 khz, if mounted in back box
Impedance6 ohms
Construction     Rigid aluminum front edge with HD ¾” front baffle .

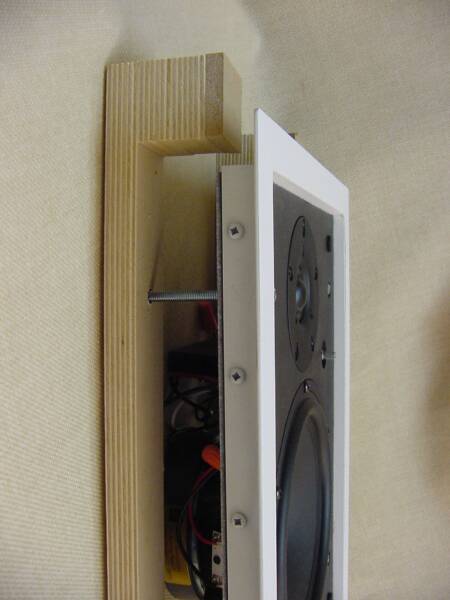

Wall mounting   ¾” birch ply trestle with spanners.
Grille / Color     A wide variety of fabrics are available
Hole Cut Out      38" x 9.5"
Overall Size      39.5 h x 11” w x 3.7” d.

Source Technologies, 701 Nutmeg Road N. South Windsor Ct. 06074.(860) 528 2892,
