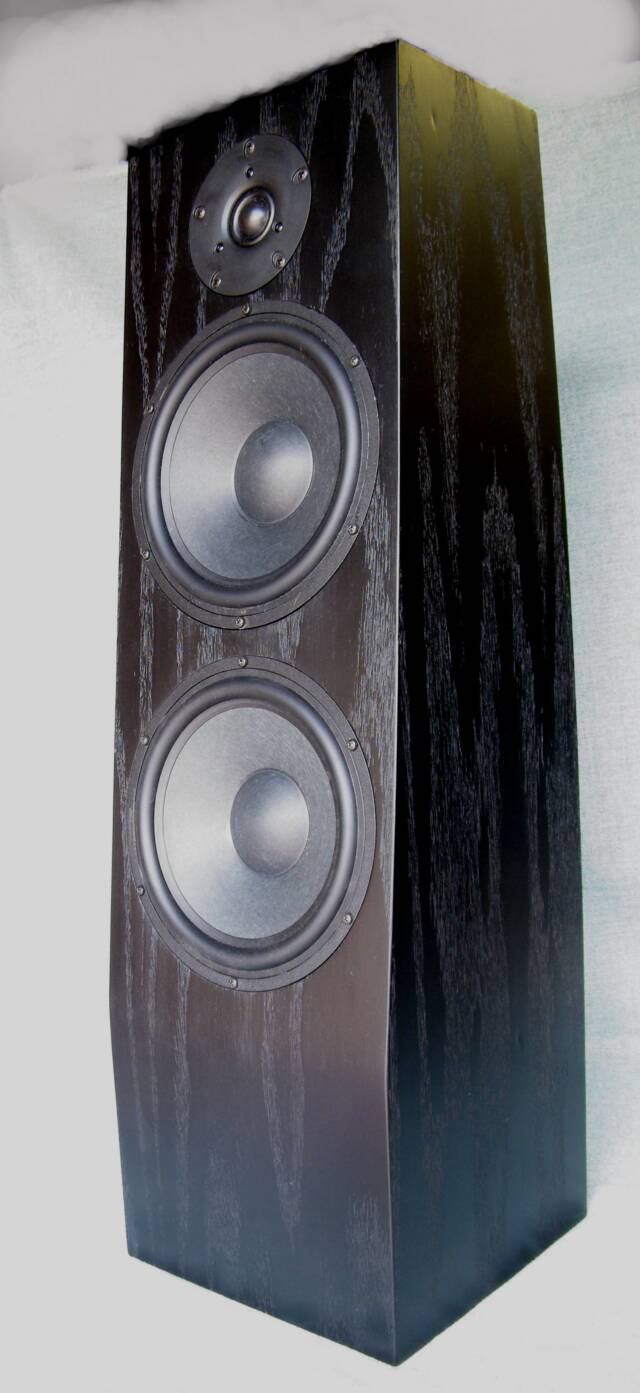

8.2 WC/CC
8.2 WC/CC is a dual 8", high resolution, floor standing tower that can be used either as a large screen center channel or front mains. Its two staged, angled front reduces internal standing waves and minimizes floor reflections while maintaining optimum vertical and lateral dispersion. 8" Quite Cone™wool fibre drivers provide a "fast" and natural definition while providing excellent transient response. A textle ring dome tweeter completes the system, making the 8.2 WC/CC a top choice for hi resolution theater and stereo.
SpecificationsSystem Design Quasi 3 way floor standing with 3rd order venting
Quasi 3 way floor standing with 3rd order venting Woofer (1) 8” Cast Wool/Carbon with 1.7” long throw voice coil
(1) 8” Cast Wool/Carbon with 1.7” long throw voice coilMidrange/ Mid bass (1) 8” Cast Wool/Carbon with 1.7” long throw voice coil
Tweeter 1” Vifa Ring Textile Dome
1” Vifa Ring Textile DomeCrossover150hz, and 1.9 khz. Minimum phase
150hz, and 1.9 khz. Minimum phaseFreq. Response 32 hz – 20 Khz
32 hz – 20 KhzSensitivity91 db @ 1 W 1 M
91 db @ 1 W 1 MPower Min – Max 20 W – 350 W
20 W – 350 WImpedance 6 ohms
6 ohmsSize, weight 30" h x 9" w x 9.5/6.6" d . 45 lbs ea.
30" h x 9" w x 9.5/6.6" d . 45 lbs ea.Available finishes Oak, Maple and Cherry.
Oak, Maple and Cherry.
